Plastic Coated Wire 1.5mm Tinned Copper Fire Resistant Cable

  • Plastic Coated Wire 1.5mm Tinned Copper Fire Resistant Cable
  • Plastic Coated Wire 1.5mm Tinned Copper Fire Resistant Cable

Plastic Coated Wire 1.5mm Tinned Copper Fire Resistant Cable

    Payment Type: L/C,T/T,D/P,Western Union
    Terms of Trade: FOB,CFR,CIF,FCA,CPT,CIP
    Min. Order: 1000 Meter
    Delivery Time: 30 Days
    Packaging: Drums
    Productivity: 500kilometers/month
    Brand: HUAYUAN YONGTONG
    Transportation: Ocean,Land,Air
    Place of Origin: Beijing, China
    Supply Ability: 500kilometers/month
    Certificate: CE,CCC,ISO
    HS Code: 8544601200
    Port: Tianjin Port,Shanghai Port,Beijing

Basic Info

Model No.: KVVP

Application: Power Station, Industrial, Underground, Construction

Voltage: Low and Medium Voltage Cable

Current: AC Cable

Insulation Material: XLPE

Sheath Material: Crosslinking

Material Shape: Round Wire

Wire Core Material: Bare Copper Wire

Certification: VDE, UL, RoHS, CE, CCC, ISO

Model: KVVP

Brand: HUAYUAN YONGTONG

Product Description

Plastic Coated Wire KVVP-1 1.5mm Tinned Copper Fire Resistant Cable


Product application: General electrical andelectronic equipment internal linksand . Such as: dryer, automatictoaster, transformer etc.

Instruction: stranded, tinned or bare copper conductor

Certificate number: E304362

Rated temperature: 105ºC

Rated voltage: 300V

Product's implementing standards:

It has passed UL VW-1, CSA FT1 flame test.


Type

 (AWG)

Conduct

(mm)

(mm)

(mm)

(Ω/KFT)



Standard Pup-up

Gauge

Construction

Conductor

Insulation

Wire O.D

Max Cond. Resistan-ce

FT/Roll

Meter/roll

(AWG)

(No./mm)

Outer

Thickness

(Ω/kft ,20ºC)





Diameter





Multi-core

30

7/0.10

0.3

0.38

1.12

354.25

2000

610

28

7/0.127

0.38

1.2

223.75

26

7/0.16

0.48

1.3

139.73

24

11/0.16

0.61

1.43

93.3

22

17/0.16

0.76

1.58

55

20

21/0.178

0.94

1.76

34.6

18

16/0.254

1.16

2.05

21.8

16

26/0.254

1.49

2.4

13.7

Single-core

28

1/0.32

0.32

1.14

227.39

26

1/0.404

0.404

1.22

142.79

24

1/0.511

0.511

1.33

89.39

22

1/0.643

0.643

1.46

54.3

20

1/0.813

0.813

1.63

33.9

20

1/1.024

1.024

1.84

21.4

18

1/1.024

1.024

1.84

21.4

16

1.29

1.29

2.11

13.5

 Tin Plating

26

7/0.16

0.48

1.3

139.73

Model

Voltage

Specs & Cross Section

NH-VV,NH-VV22,NH-YJV,NH-YJV22

600/1000

Core: ~5 Cores, 3+2 Cores. Cross Section:2.5~240(mm2)

NH-KVV,NH-KVV22

450/750

Core: 2~61 Cores.
Cross Section: 2.5~10(mm2)

NH-BV,NH-BVV

450/750

Core: 1~5 Cores
Cross Section: 2.5~240(mm2)

Technical Feature:
1): Electrical Quality and Physical and Mechanical Quality is the same as
Other common Products.
2): Capacity is the same as other common Products.
3): Fire Resistance Ability meets the IEC60331 Standard: 3A Fuse is not melted
During Burning Testing.
4): For Cross Section of 25MM2 or Below, The O.D of Fire Resistant Cable is 15% Larger than Common Cable, For Cross Section of  more than 25MM2 , The O.D of Fire Resistant Cable is 25% Larger than Common Cable

Attentions
1): When Connecting the Cable Heads, Conductor and Insulation Parts should
 Be wrapped with 4 Layers of Mica Tape as Fire Resistant Layer. Other Cabling Methods are the same as common Cable.
2): Avoid from Hurting by Sharp Objects, Otherwise, Fire Resistant Ability
 Will be reduced.

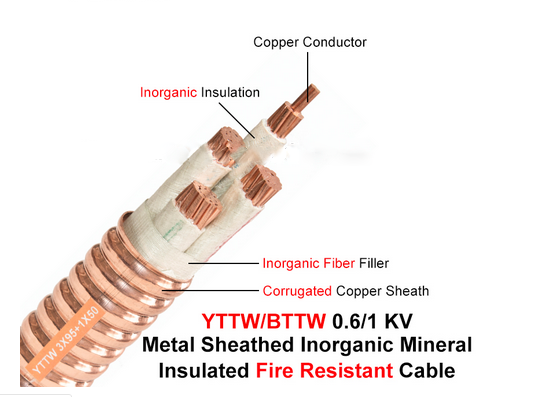

Yttw


YTTW

Loaded in the Container for Shipment

cantainer

Test

Test Equipment

Certificates

BSI Certificate for Fire Resistant and BS6387-2013 (1)


Location

TEST REPORT

BASEC-1BASEC-2BASEC-3BASEC-4BASEC-5

  • 1
  • 2
  • 3
  • 4
  • 5


Beijing Huayuan Gaoke Cable Co., Ltd. was established in 1998,located in Daxing District in Beijing China. The factory covers an area of over 20,000 square meters and has eighteen domestic and foreign advanced production equipments of power cables up to 110kv XLPE insulated Cables. Company successfully introduced aluminum alloys cable production lines, mineral insulated fire resistent cable production line and silicon rubber cables production line in 2012. The company aims to seek perfect quality, technological innovation, energy efficiency and environmental protection. Huayuan has become an up-rising star in Chinese high-tech enterprises of the cable. The enterprises adopted the ISO9001: 2008 quality management system certification, GB/T28001-2011 occupational health and safety management certification, ISO14001: 2004 environmental management certification, CCC certification, the national industrial production permit, qualified suppliers of electric supply bureau in Beijing and so on,the mineral insulated fire resitent cable pass BSI CERTIFICATE as BS 6387:2013,All products meet the national wire and cable standards.our cables had been exported to Southeast Asia, Europe, North America,South America for many key projects.

we warmly welcome all friends, specialists and professorsfrom all the world to visit, investigate, cooperate and exchange for technology and mutualbenefits in our company at any time.
